Concrete formworks are temporary structures that support fresh concrete until it gains enough strength to become a self-supporting unit. These formworks are indispensable in construction processes and play a critical role in ensuring the quality, strength, and durability of concrete structures. In this article, we will highlight the top five concrete formwork systems that enhance construction efficiency, their benefits, application areas, and how to choose the right one for your project.
Understanding Concrete Formwork
Concrete formwork refers to the temporary moulds or structures used to contain and support freshly poured concrete until it has set and developed enough strength to support itself. These systems are crucial in determining the final appearance, strength, and quality of concrete structures.
Types of Formwork Materials
Concrete formworks can be made from various materials, each offering distinct advantages:
| Material | Description | Advantages |
|---|---|---|
| Wood | Traditional and versatile | Economical, readily available, adaptable |
| Steel | Durable and reusable | High strength, long-lasting, suitable for large projects |
| Aluminum | Lightweight and corrosion-resistant | Easy to handle, resistant to rust |
| Plastic | Ideal for curved surfaces and special designs | Flexible, lightweight, quick setup |
| Fiber-reinforced polymers | Strong and lightweight | Resistant to corrosion, highly durable |
Importance of Efficient Formwork Systems
Efficient formwork systems offer numerous benefits that contribute to the overall success of a construction project. Some key reasons for their importance include:
| Benefit | Description |
|---|---|
| Increased Construction Speed | Formwork systems help speed up the construction process by reducing setup time and improving labor efficiency. |
| Improved Quality and Accuracy | They ensure that the concrete structure is accurately, minimizing defects. |
| Enhanced Safety | Proper formwork reduces the risk of accidents by providing stable support for workers and materials. |
| Cost Reduction | Efficient systems reduce waste, downtime, and the need for repairs, leading to cost savings. |
| Sustainability | By optimizing material use and reducing waste, efficient formwork practices contribute to environmentally-friendly construction. |
Choosing the Right Formwork System
When selecting a concrete formwork system, several factors should be considered:
| Factor | Considerations |
|---|---|
| Project Scope and Size | Larger projects may require more durable and reusable systems, while smaller ones can benefit from lightweight options. |
| Material Availability | Availability and cost of materials in your location can influence your choice of formwork. |
| Design Requirements | Special designs or curved surfaces might need specific formwork, such as plastic or custom molds. |
| Project Timeline | If time is of the essence, fast-setting formworks like plastic or aluminium may be ideal. |
| Budget | Evaluate the total cost of materials, setup, and labour when selecting a system. |
By carefully considering these factors, you can ensure the selection of the most efficient and cost-effective formwork system for your construction project.
Top 5 Concrete Formwork Systems
The following are the top five concrete formwork systems that offer various advantages, and their application areas:

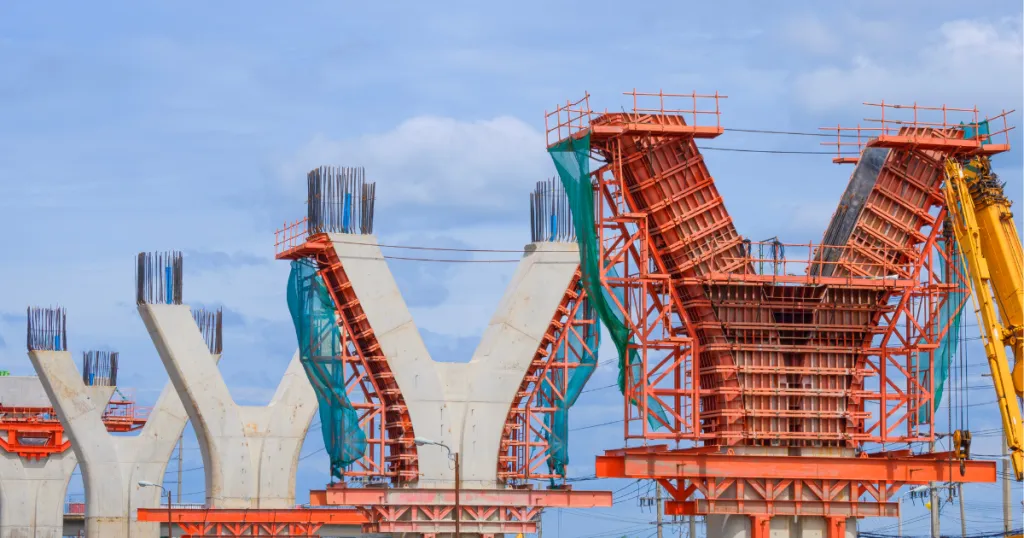

A. Metal Formwork Systems
Metal formwork systems are available in steel and aluminium and boast several advantages in strength, durability, and reusability compared to traditional timber formwork.
| Material | Advantages | Disadvantages | Applications |
|---|---|---|---|
| Steel | Highly strong and durable | Heavy weight and higher initial costs | High-rise buildings, large infrastructure projects |
| Aluminium | Excellent for repetitive use | Requires more maintenance for corrosion protection | Repetitive structural elements (columns, beams, etc.) |
| Precise and smooth concrete finishes | May not be suitable for small projects | ||
| Less labour costs due to speedy assembly | Higher transportation costs due to weight |
The fast and precise assembling of metal formwork systems saves labour costs and time for the whole project. They can also bear high pressures of concrete, making them suitable for constructing high-rise structures with high-quality finishes.
B. Plastic Formwork Systems
Plastic formwork systems find increasing usage due to their lightweight and resistance to corrosion.
| Material | Advantages | Disadvantages | Applications |
|---|---|---|---|
| Plastic | Light in weight and easy to handle | Less durable for heavy or repetitive use | Architectural concrete elements |
| Resistance to corrosion | Limited reusability compared to metal | Curved walls and structures | |
| Can be used on curved surfaces and in complicated geometries | Not suitable for high-pressure concrete projects | Projects in corrosive environments | |
| Cleaning and maintenance are very easy | Less precise finish compared to metal forms |
Plastic concrete formwork is especially helpful in developing special shapes and designs for concrete structures. Its light weight enables easy transportation and handling at the site, and its resistance to corrosion makes it long-lasting even in corrosive environments.

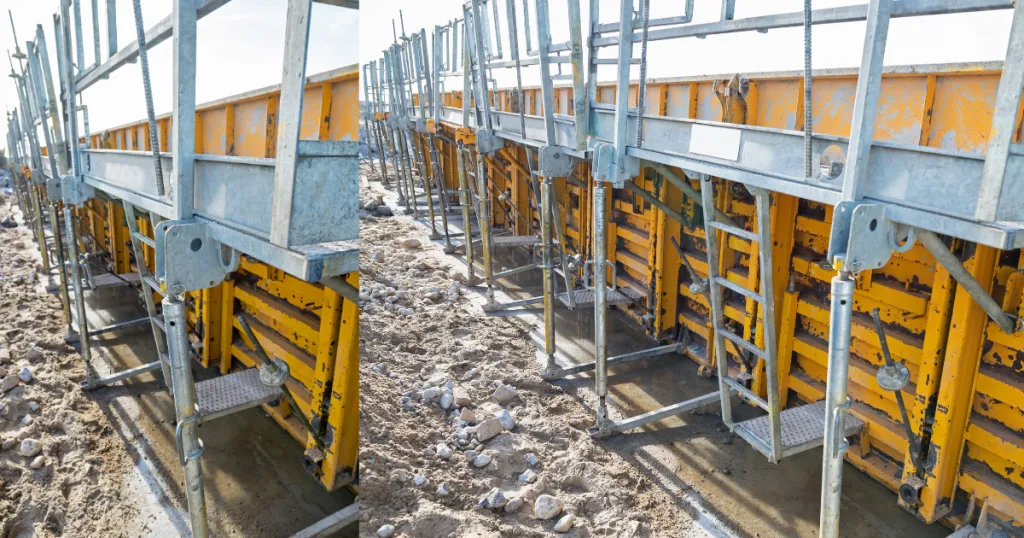

C. Prefabricated Formwork Systems
Prefabricated concrete formwork systems, including precast concrete panels and modular formwork options, speed up construction activities by allowing fabrication and assembly off-site.
| Material | Advantages | Disadvantages | Applications |
|---|---|---|---|
| Prefabricated Panels | Less on-site labour | Requires significant upfront planning and design | Large-scale residential and commercial projects |
| Modular Systems | Better quality control | Can be expensive depending on scale | Standardized building elements |
| Faster project completion | May need specialized handling and storage space | Projects with tight schedules | |
| Consistent concrete finishes | Limited flexibility for custom designs |
These systems significantly reduce on-site labour, improve quality control, and accelerate project completion. They are particularly useful for projects with repetitive elements or those requiring rapid construction.
D. Slip form Concrete Systems
Slip form concrete systems involve a continuous pouring method where the formwork moves upward as concrete is poured, creating tall structures efficiently.
| Material | Benefits | Disadvantages | Applications |
|---|---|---|---|
| Slip form Systems | Rapid construction of tall structures | Requires skilled operators | Silos and storage tanks |
| Continuous concrete placement | Limited to certain types of structures | Bridge piers and towers | |
| Reduced formwork assembly and disassembly time | High initial setup cost | High-rise buildings | |
| Uniform concrete quality | Limited flexibility for irregular shapes |
This method is highly efficient for constructing tall, uniform structures like silos, bridge piers, and high-rise buildings. It allows for continuous concrete placement, resulting in a seamless structure with minimal cold joints.

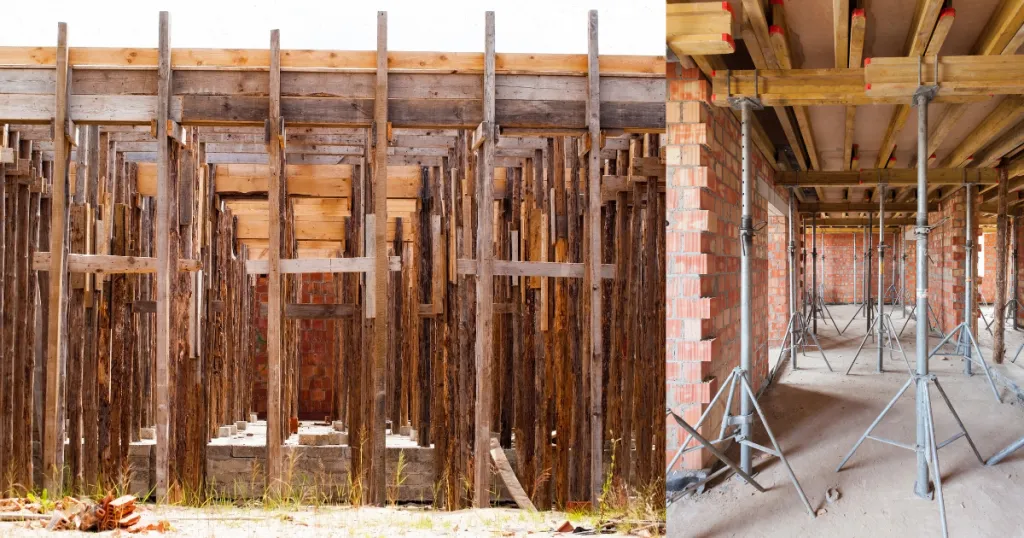

E. Traditional Timber Formwork
Despite advancements in formwork technology, traditional timber formwork remains a cost-effective and versatile option for many construction projects.
| Material | Benefits | Disadvantages | Applications |
|---|---|---|---|
| Timber | Low initial cost | Limited durability for large or repetitive use | Residential construction |
| Easily customizable on-site | Requires more time for assembly and disassembly | Small-scale commercial projects | |
| Suitable for small-scale projects | Not ideal for high-pressure or complex designs | Custom or unique structural elements | |
| Familiar to most construction workers | Limited reusability compared to other materials |
Timber formwork is particularly useful for projects with unique or custom elements that require on-site modification. Its low initial cost makes it attractive for smaller projects or those with limited budgets.
By selecting the appropriate concrete formwork system based on your project’s specific needs—whether it’s for high-rise buildings, small-scale projects, or specialized designs—you can ensure efficient construction processes and cost-effectiveness.
Benefits of Modern Formwork Systems
Modern concrete formwork systems come with a load of advantages over traditional ones, hence the increased efficiency and quality in construction projects.
A. Increased Efficiency
The modern formwork system, especially prefabricated and modular designs, hugely saves labour costs and enhances the speed of construction3. This means faster completion of projects and reduced site disruption.
B. Quality and Accuracy
Advanced formwork systems are pre-engineered for consistent, smooth concrete finishes and superior structural integrity3. Such heightened quality reduces the necessity of expensive rework, generally improving the appearance of the finished structure.
C. Improved Safety
Formwork systems can provide a stable and secure structure on which workers can operate, reducing the risk of accidents and injuries1. Modern systems are designed to bear wet concrete weight with minimal chance of collapse or other structural failure.
D. Cost-Effectiveness
While the initial investment in modern formwork materials is higher compared to traditional methods, the possibility of reusing forms multiple times reduces the cost substantially in the long run1. Greater efficiency and accuracy can also have a major impact on improving labour costs and reducing rework.
E. Sustainability
Many of the formwork systems today are produced with recycled materials and significantly reduce waste, thus giving a greener construction. The reusability and durability of the formwork systems further reduce environmental impacts at the construction site.
Selection of Concrete Formwork System
The right concrete formwork system is imperative for any concrete construction to be successful. There are several factors that have to be considered in arriving at the right choice of formwork system.
A. Factors to Consider When Choosing a Formwork System
Selecting the right formwork system is a critical step in ensuring the success of a concrete construction project. Below are the key factors to evaluate:
| Factor | Description |
|---|---|
| Project Requirements | Analyse the design needs of the structure, including shape, size, complexity, loading, and durability. |
| Site Conditions | Consider weather, soil conditions, and site access to ensure compatibility with the environment. |
| Budget | Evaluate initial costs, long-term value, reusability, and potential labour savings. |
| Construction Timeline | Assess the impact of assembly and disassembly times on the project schedule. |
| Concrete Finish | Determine the desired surface finish, as formwork material can influence appearance. |
| Safety | Prioritize systems offering enhanced safety features and stability. |
| Reusability | Opt for formwork with high reuse potential to lower the cost per cycle. |
| Flexibility | Select systems that can adapt to changes or complex shapes as required by the design. |
B. Matching Concrete Formwork to Project Needs
To ensure the chosen formwork system meets the demands of your project, follow these steps:
- Assess the specific requirements of your project, including structural design, timeline, and budget constraints.
- Consider the expertise of your construction team and their familiarity with different formwork systems.
- Evaluate the long-term cost-effectiveness of each option, including potential for reuse in future projects.
- Consult with formwork suppliers or specialists to get expert advice on the best system for your specific needs.
By carefully considering these factors, you can choose a formwork system that ensures the success of your concrete construction project while maximizing efficiency and quality.
Frequently Asked Questions
What is the most common type of formwork?
Traditional timber formwork remains one of the most common types due to its versatility and low initial cost. However, metal and plastic formwork systems are increasingly popular for larger or more complex projects.
How long does concrete take to set in formwork?
The setting time for concrete in formwork depends on concrete mix, temperature, and humidity. Normally, the concrete attains initial set in 24-48 hours but takes 7-28 days to achieve complete strength.
Can formwork be reused?
Yes, most modern formwork systems are designed to be used many times. Metal and plastic formworks can be re-used hundreds of times; however, timber formwork may be used a fewer number of times.
What is the difference between concrete formwork and shuttering?
Formwork and shuttering are two terms that are very much used interchangeably. However, shuttering does refer to the vertical forms for walls and columns, while formwork is the general term for temporary structures that carry and shape concrete.
Conclusion
The various effective concrete formwork systems that modern concrete construction presents offer efficiency, quality, safety, and cost-effectiveness. It is important to understand different types of formwork systems and consider project requirements very carefully in order for a construction professional to choose an appropriate system that will meet the demands of successful and efficient concrete construction.
With the development of technology, we can very well expect further innovations in formwork systems, which will translate into greater improvements in construction efficiency and sustainability. The use of such advantages will no doubt be highly relevant to securing competitiveness within an ever-changing construction environment.
